Trailer & Chassis Parts



Axel Saddles

GY 9

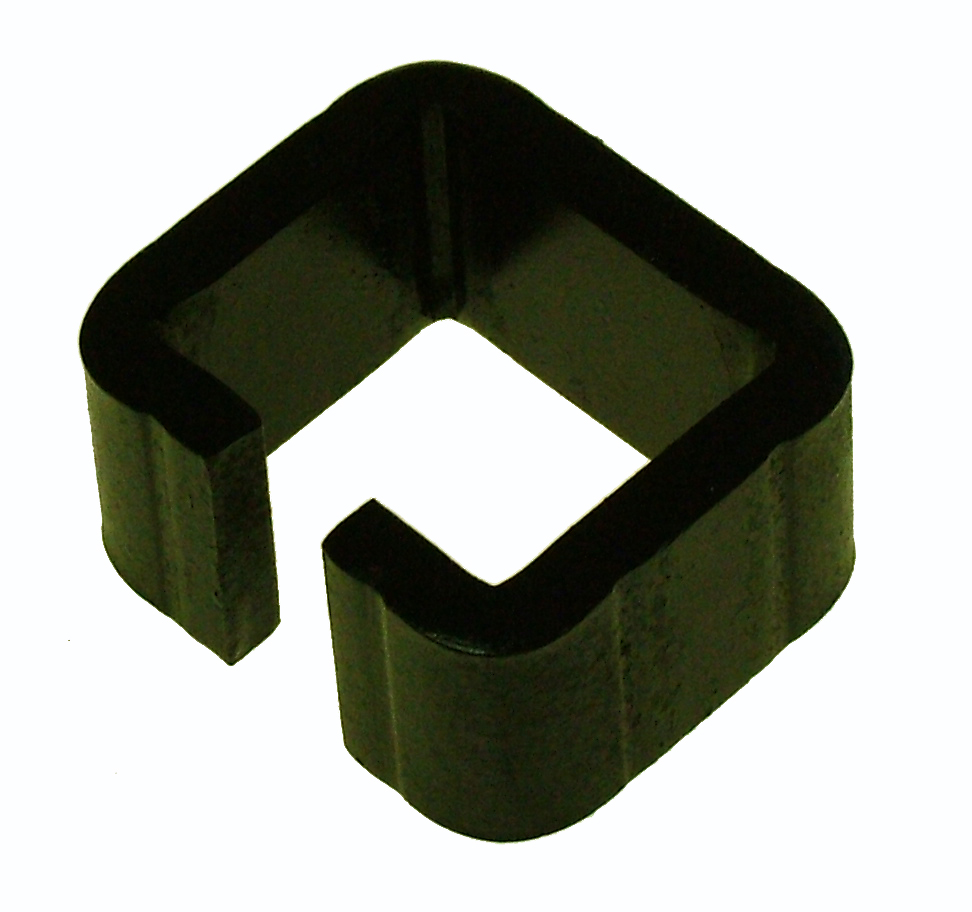

GY 11

GY 16

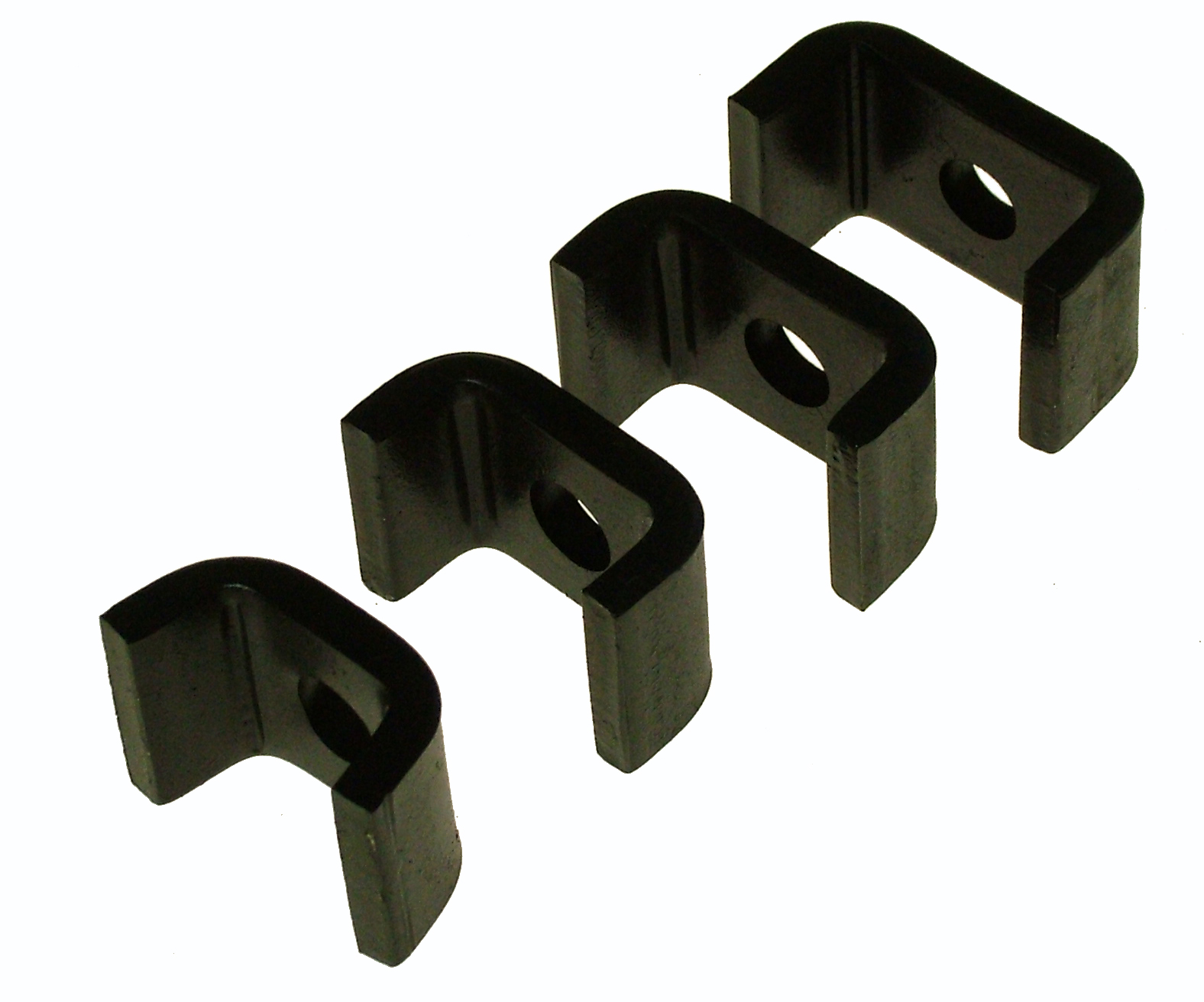

GY 72, GY 73, GY 74, GY 75



Axel Saddles

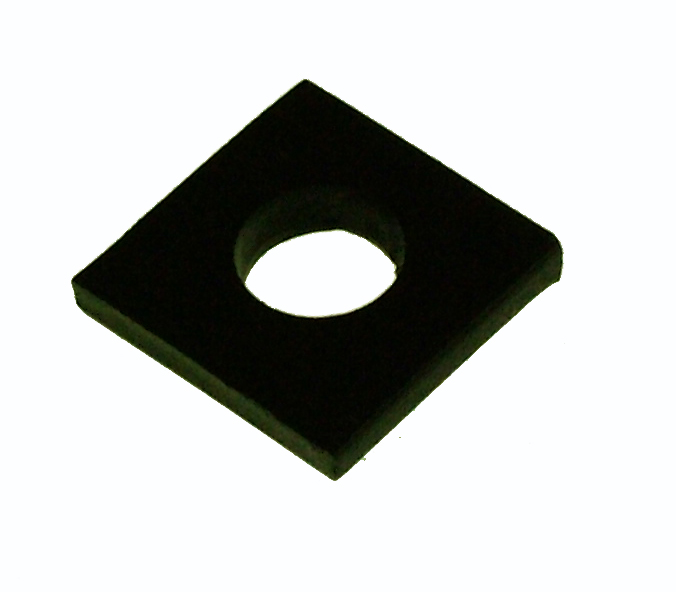

GY 16 Axel saddle

40 x 40 x 8mm

18mm hole in center

PART No. MATT AXEL SIZE
 GY 72  40 x 8  40 sq
 GY 73  40 x 8  45 sq
 GY 74  40 x 8  50sq
 GY 75  40x 8  39 ROUND

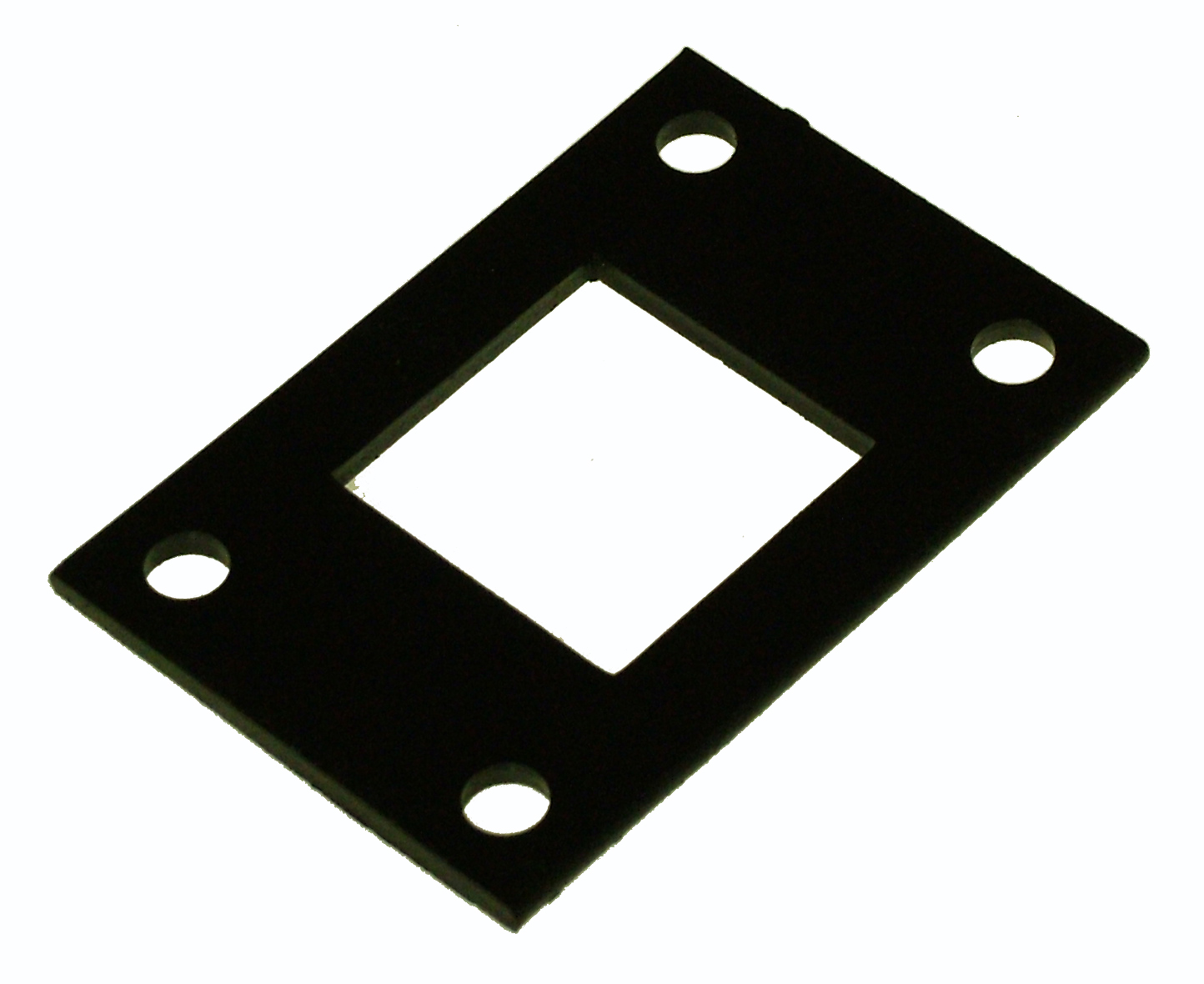

Backweld Plates

C1102REC

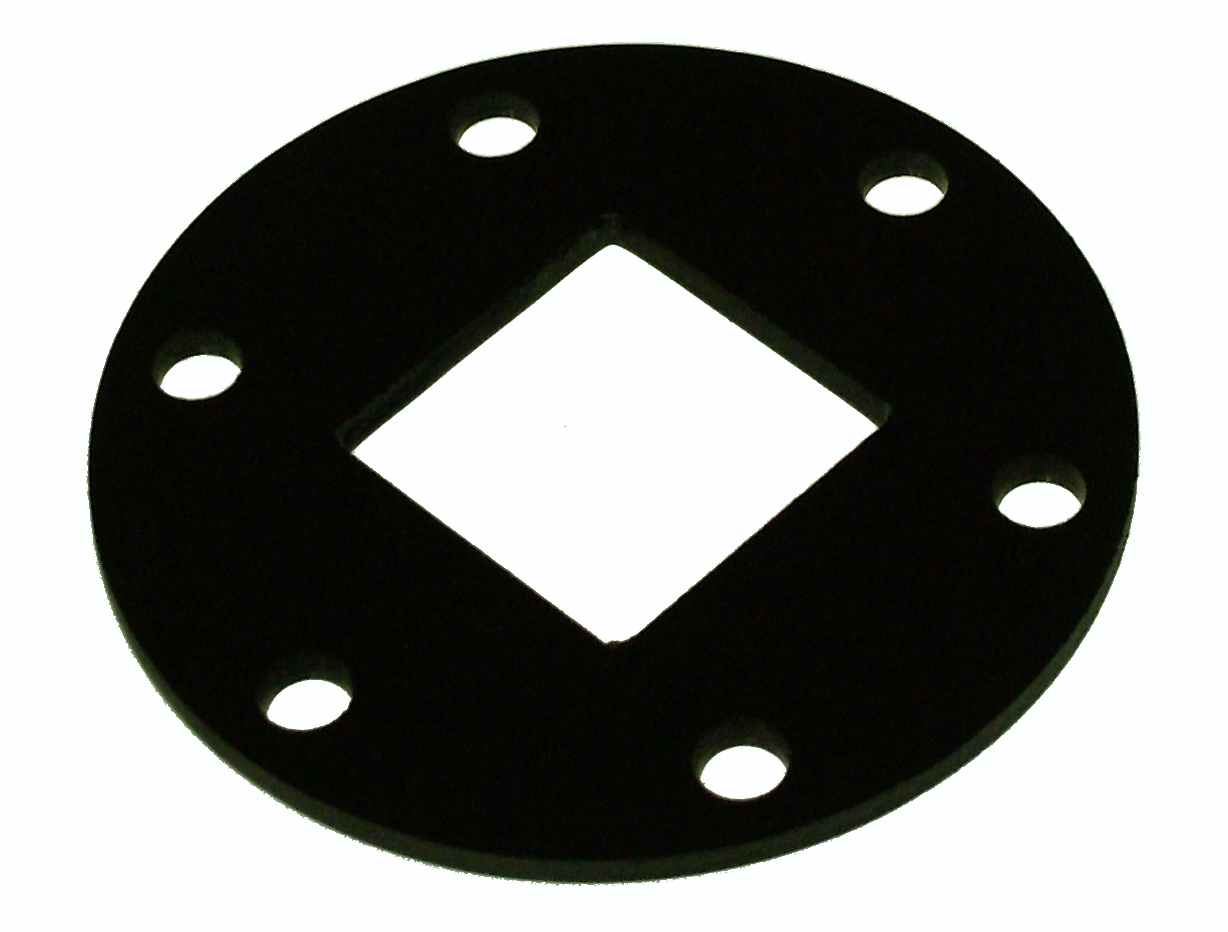

C1102 ROUND



Backweld Plates

PART No.  AXEL SIZE
C1101 REC 40
C1102 REC 45
C1101 ROUND 40
C1102 ROUND 45
C1104 ROUND 39 DIA
C1501 SQ 40
C1901 SQ 45

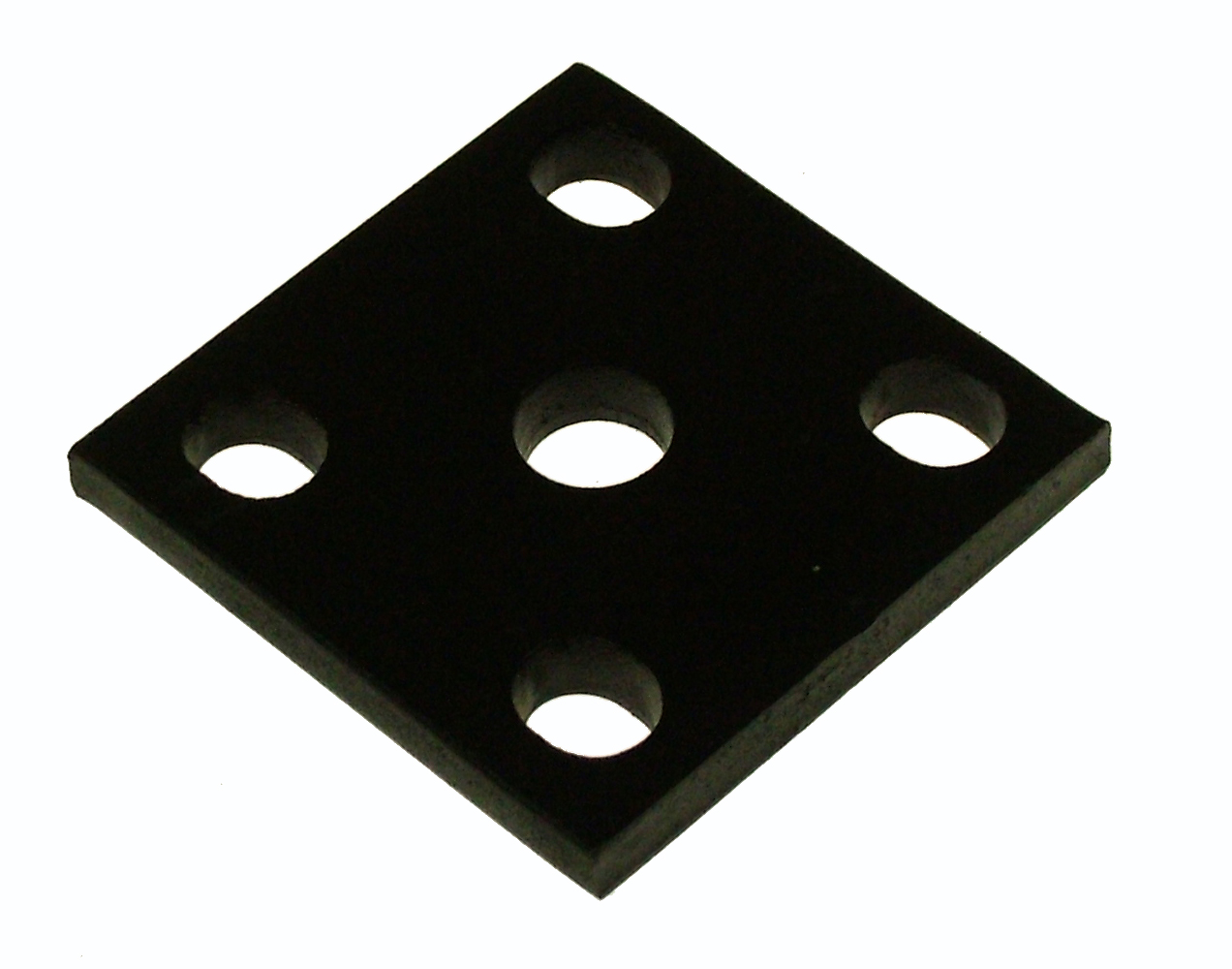

Fish Plates

GY27, GY29, GY30, GY31

Fish Plates

PART No  GAUGE AXLE SPRING HOLE SIZE
GY 27 6mm 40mm 45mm 11mm
GY 29 10mm 40mm 45mm 14mm
GY 30 10mm 45mm 45mm 14mm
GY 31 10mm 50mm 45mm 14mm



Roller brackets

GY 59

GY 80

GY 92

GY 97

GY 98

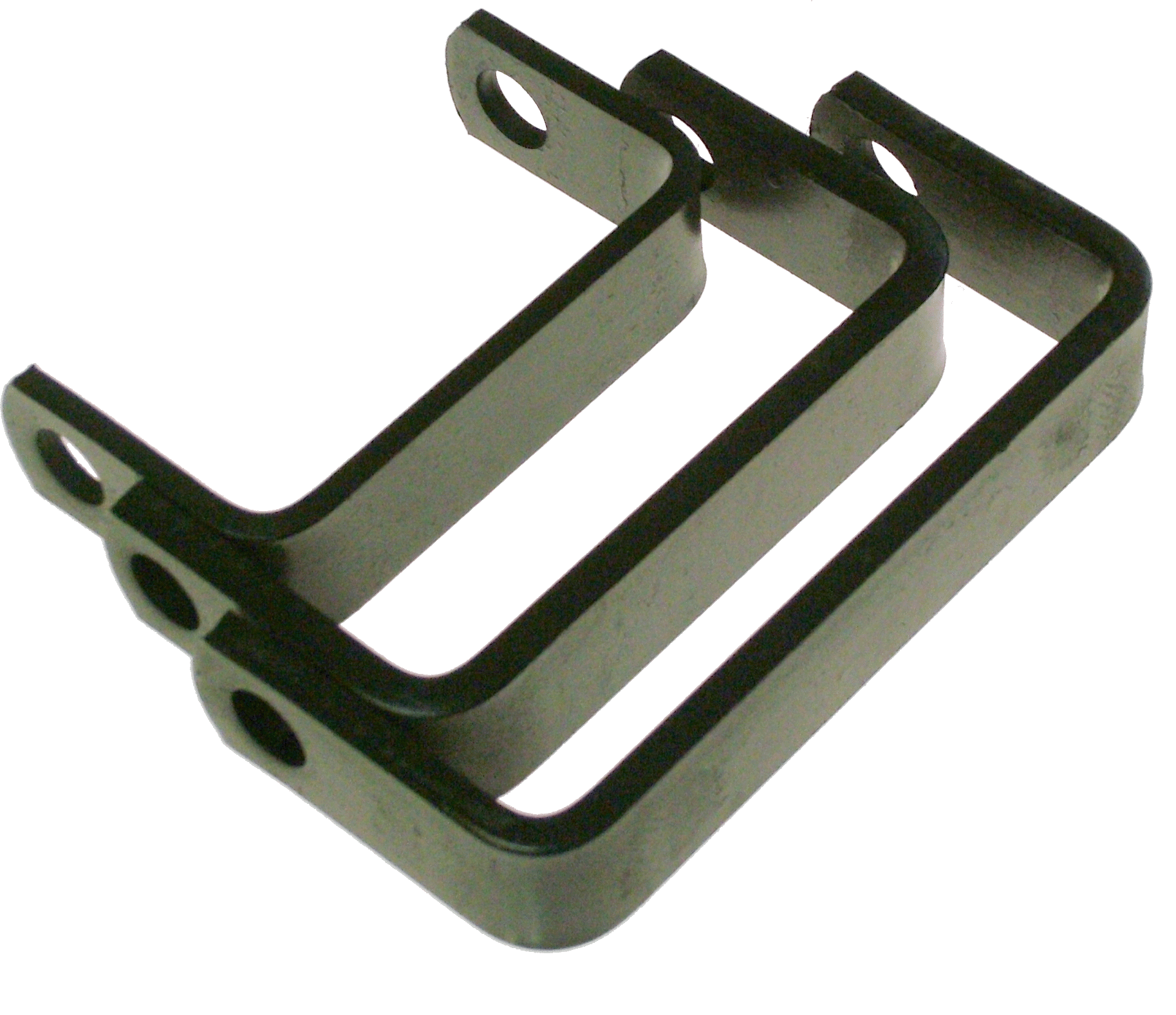

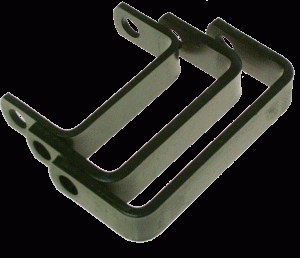

Roller Brackets


GY 7A

ROLLER BRACKET

Material 32 x 6 108 I D

Finish Black

GY 13

ROLLER BRACKET

Material 32 x 8 127mm I D

Finish Black
GY 15

ROLLER BRACKET

Material 32 x 8 155mm I D

Finish Black

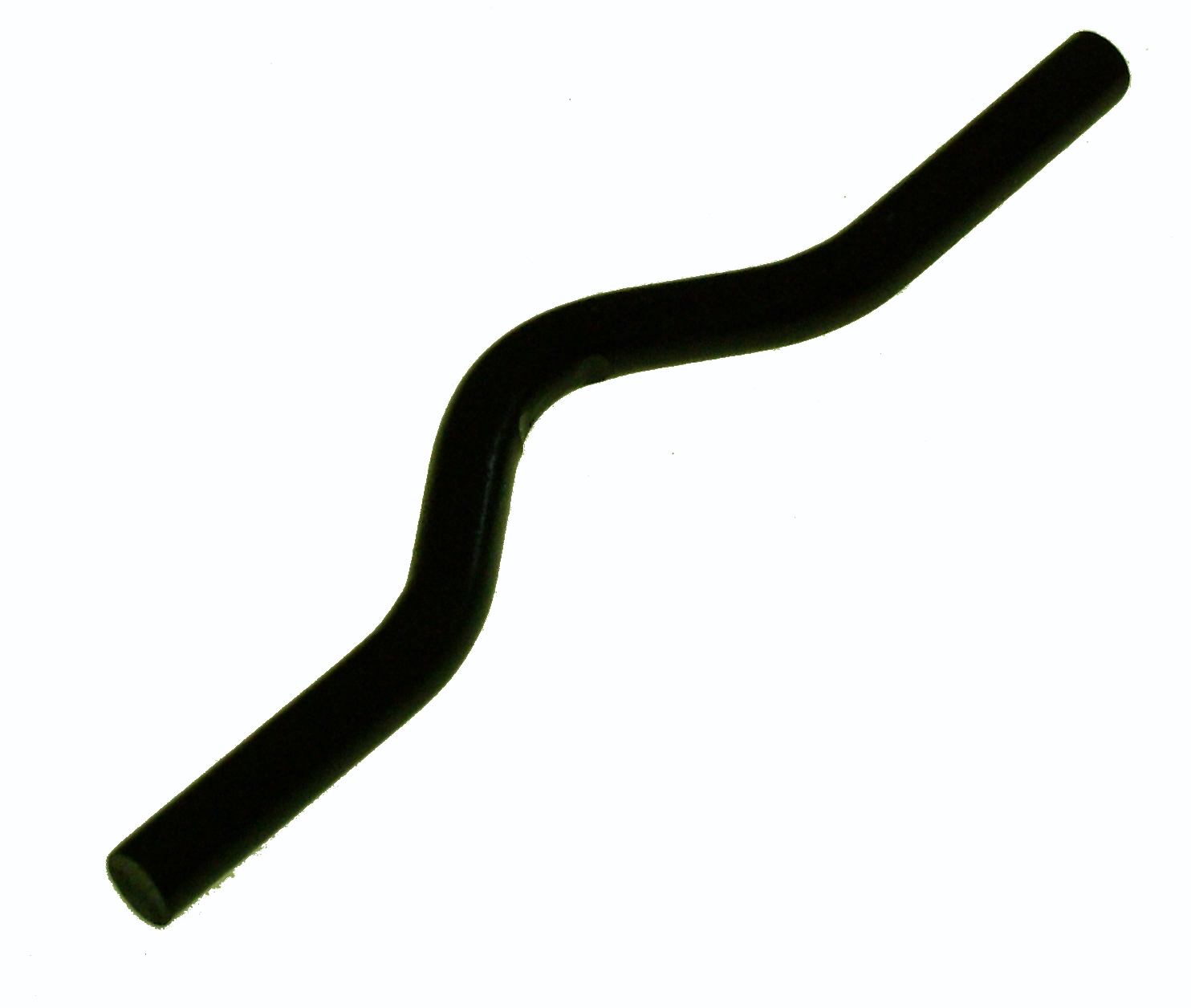

GY 59

 DOUBLE ROLLER AXEL

12mm Mild Steel

206mm Overall

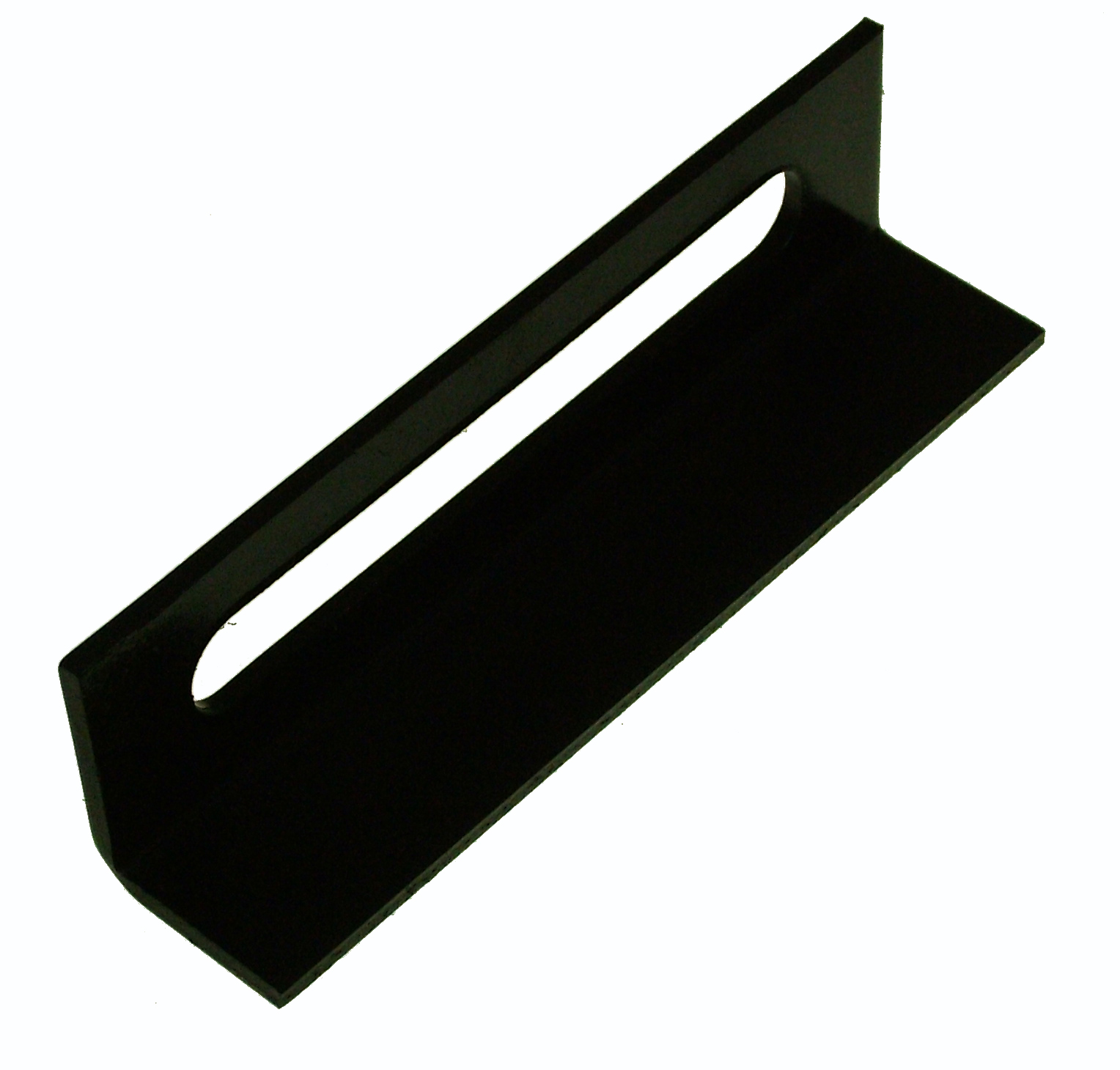

GY 97

SLOTTED BUNK BRACKET

Material 50x 8 Slot size 20 x 200

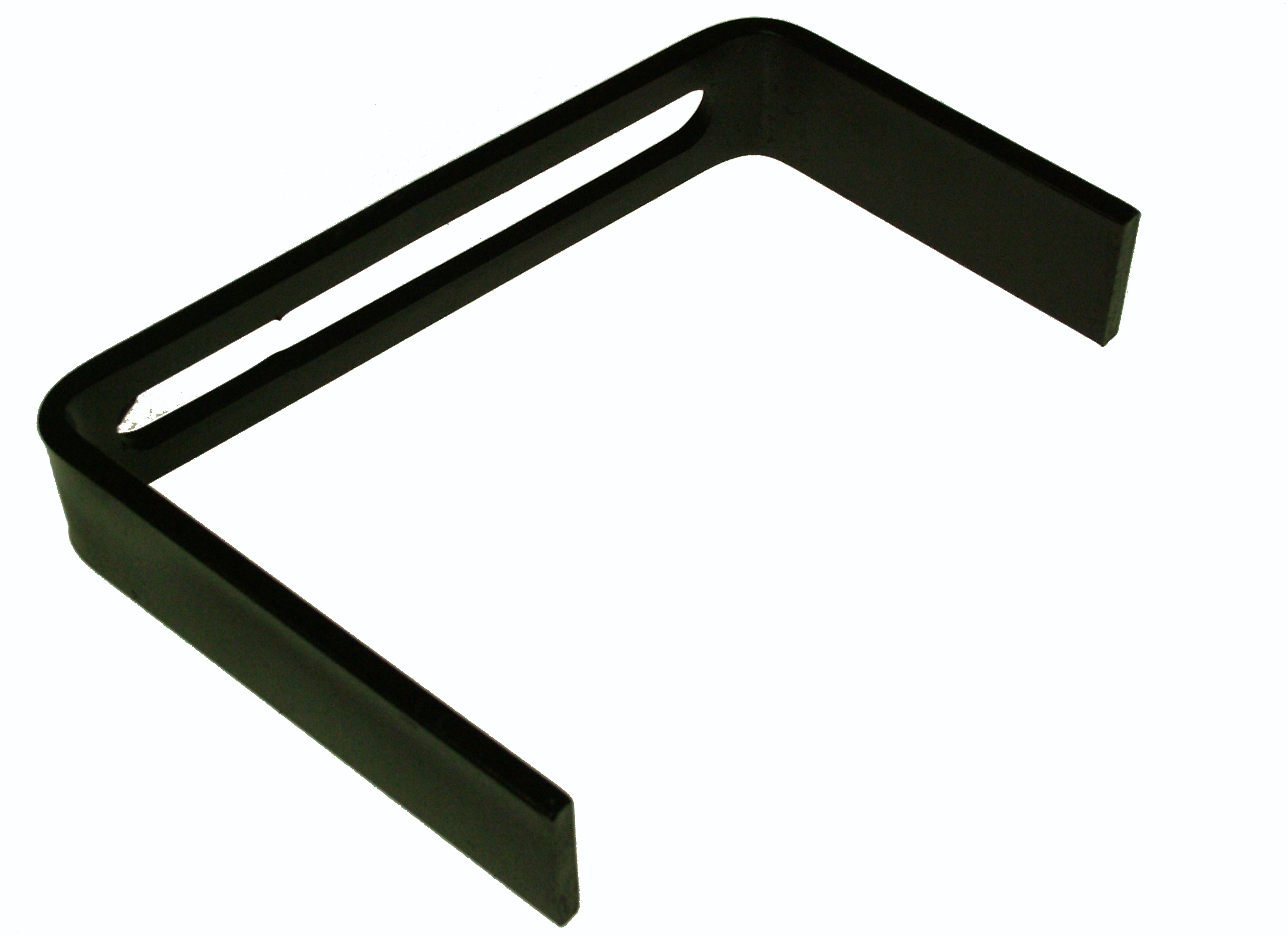

GY 98

SLOTTED ANGLE BRACKET

45 x 55 x 5 Slot size 22 x 155

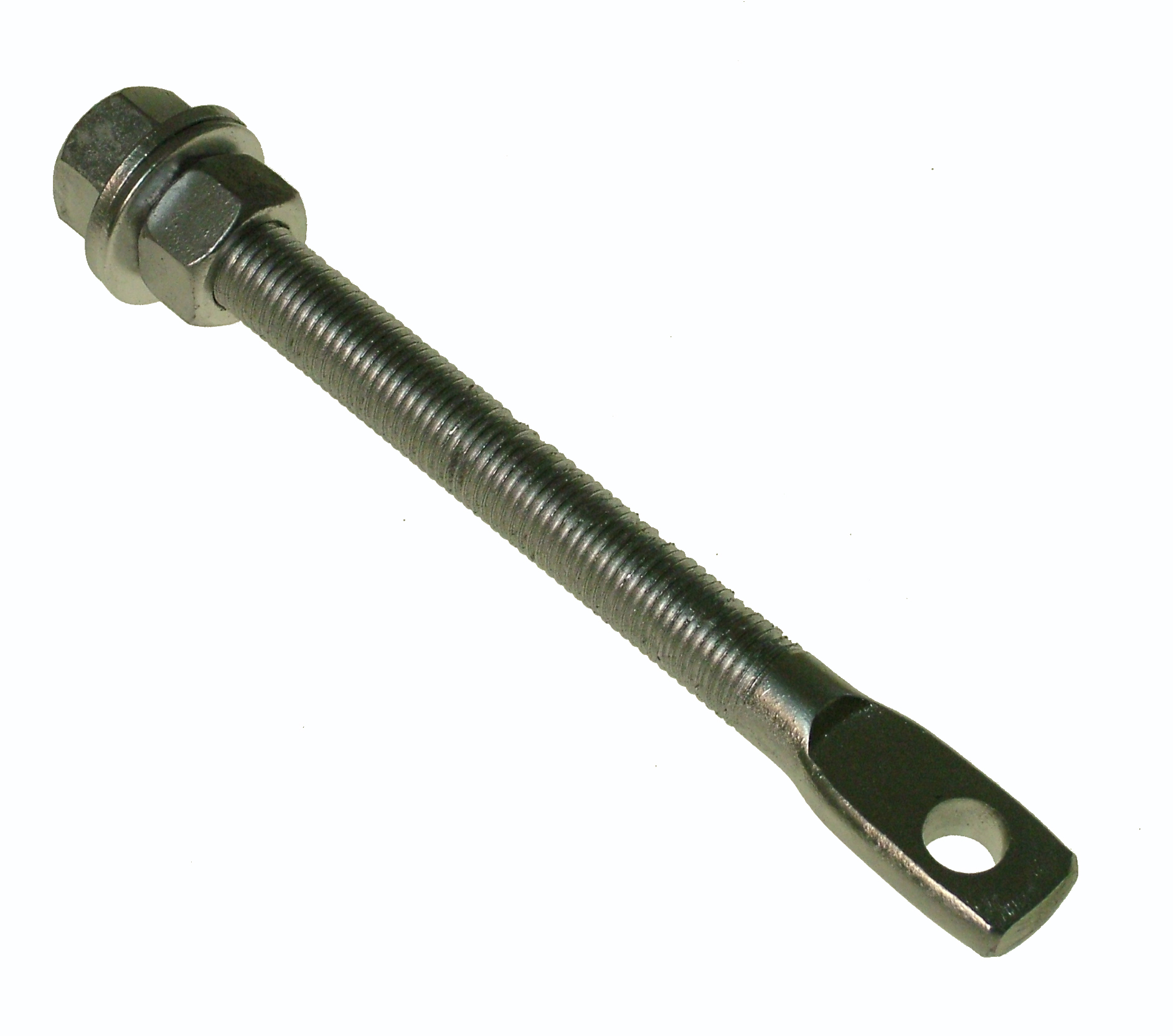

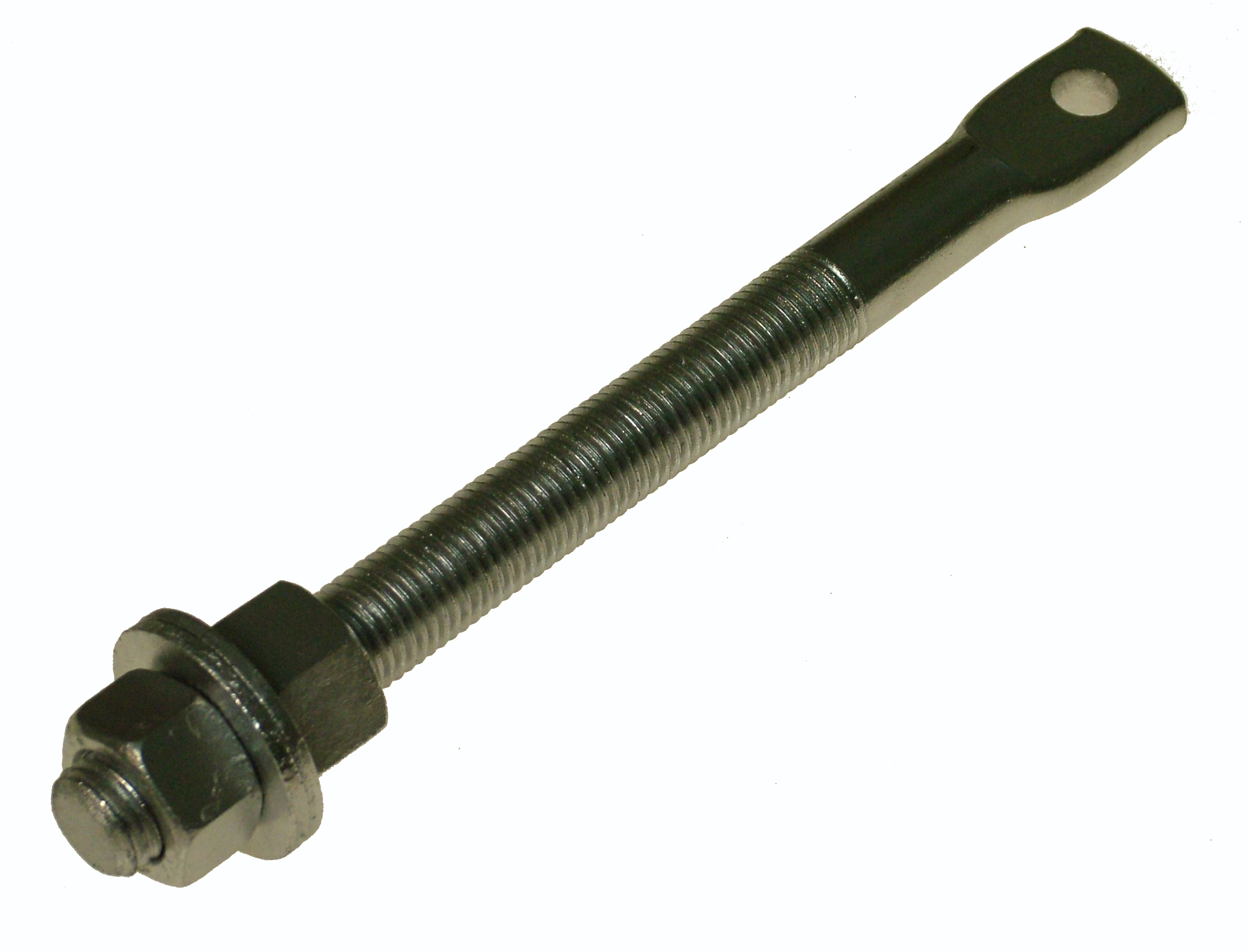

Zinc Plated Adjusting Plate

PART No Length Thread Hole Dia
GY 80 250 175 11mm M 20
GY 81 300 225 11mm M 20
GY 82 350 275 11mm M 20
GY 83 400 325 11mm M 20

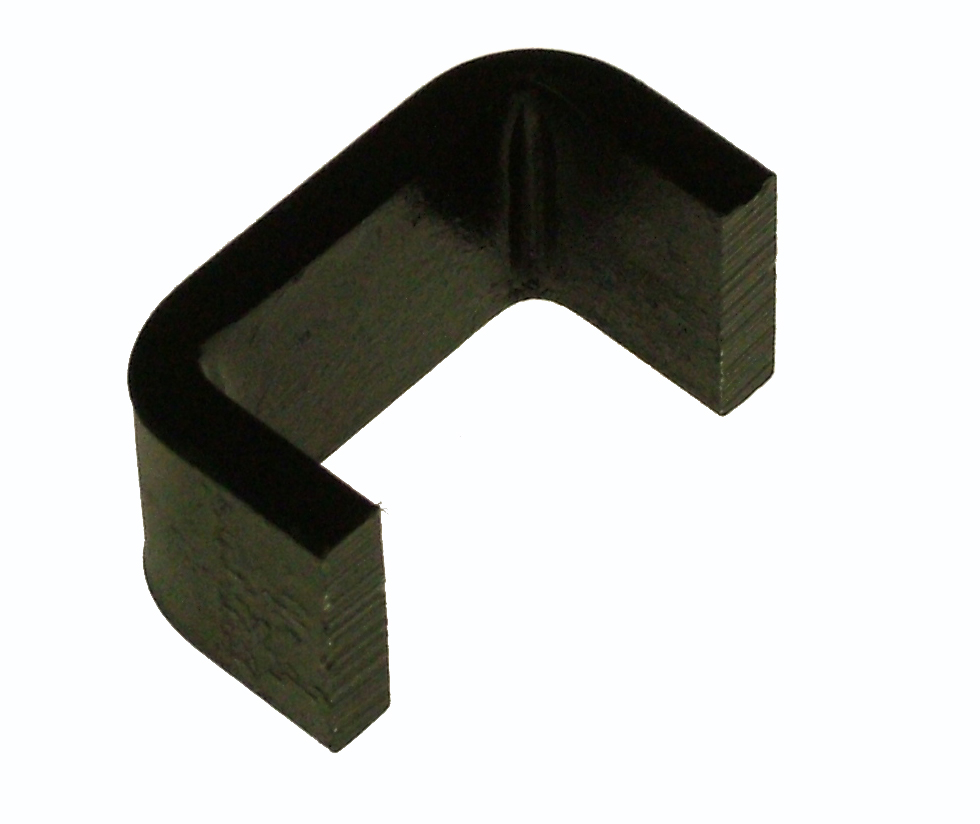

GY 91

 150 100 11mm M 16
GY 92 200 150 11mm M 16
GY 93 250 200 11mm M 16
GY 94 300 250 11mm M 16

All bolts supplied complete with 2 galvanised nuts and 2 galvanised flat washers
